Hooks & Edge Preparation
NOTE: Proper screen size and tensioning are critical for effective screening and longer screen life. Unified edge preparations fit OEM and customer-designed equipment properly for optimum tensioning. Banded edges strengthen hooked edges and provide even tensioning across the screen.
US-1
Plain Formed Edge for screens of 5/16” and larger diameter wire.
Edges are annealed by controlled heating before forming to eliminate cracking and breakage.
Plain Formed Edge for screens of 5/16” and larger diameter wire.
Edges are annealed by controlled heating before forming to eliminate cracking and breakage.
US-2
Reinforced Shroud Banded Edge is standard for screens of up to 3/8” wire diameter.
Standard shrouding is 18 gauge steel with other thicknesses available.
Reinforced Shroud Banded Edge is standard for screens of up to 3/8” wire diameter.
Standard shrouding is 18 gauge steel with other thicknesses available.
US-2 ET
End Tension Reinforced Shroud Banded Edge is compatible with all OEM replacement applications. Excellent for .244” wire and lighter.
Hook lengths will vary to meet OEM specifications. Any dimension and profile is available upon request.
End Tension Reinforced Shroud Banded Edge is compatible with all OEM replacement applications. Excellent for .244” wire and lighter.
Hook lengths will vary to meet OEM specifications. Any dimension and profile is available upon request.
US-2 Square
Any hook and angle will be manufactured to your specifications. Other hook dimensions are available upon request.
When ordering non-standard edges, give angle of formed edge and hook length.
*Custom hook edges available
Any hook and angle will be manufactured to your specifications. Other hook dimensions are available upon request.
When ordering non-standard edges, give angle of formed edge and hook length.
*Custom hook edges available
US-3

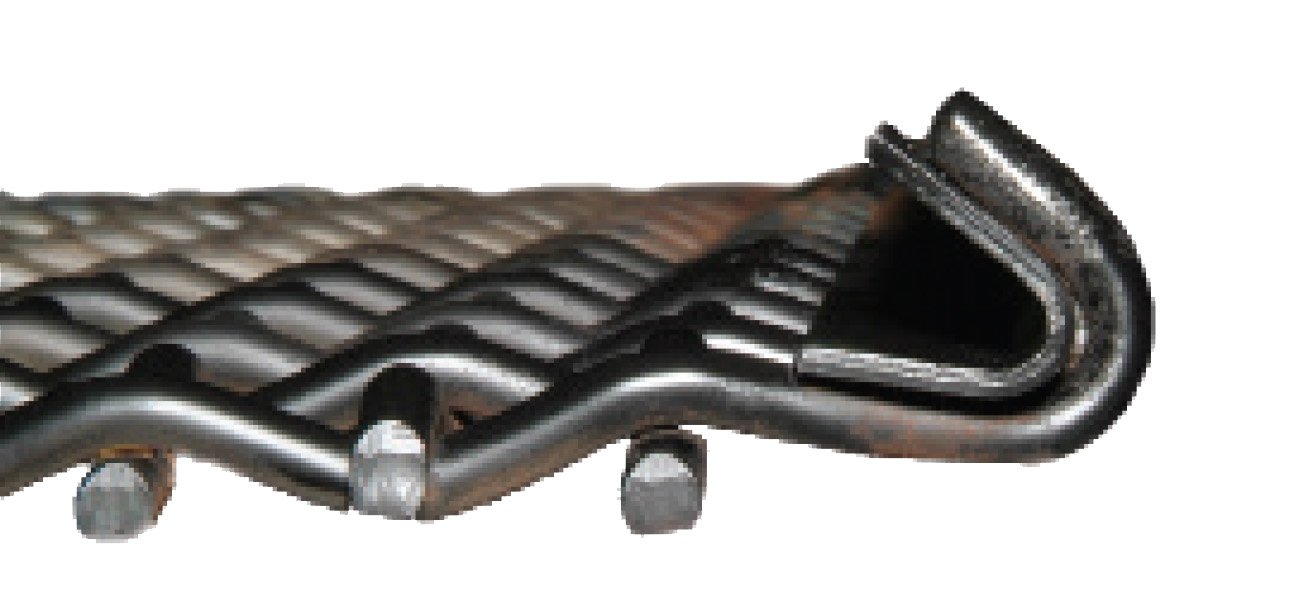

Inside Reinforced Formed Edge for screens of .313” diameter wire and larger can provide superior tensioning.
A 1/8” steel angle insert is welded inside the wire hooks, strengthening the screen for uniform tensioning and ease of installation on vibrating equipment. Also available in end-tensioned format.
Inside Reinforced Formed Edge for screens of .313” diameter wire and larger can provide superior tensioning.
A 1/8” steel angle insert is welded inside the wire hooks, strengthening the screen for uniform tensioning and ease of installation on vibrating equipment. Also available in end-tensioned format.
US-4
Welded Bent Plate Edge for 5/16” wire diameters and larger.
3/16” or 1/4” steel angle is welded on the screen edge.
Welded Bent Plate Edge for 5/16” wire diameters and larger.
3/16” or 1/4” steel angle is welded on the screen edge.
Rubber inserts are also available for additional pull-out resistance on .080 diameter wire and smaller.
Several shroud styles are available to fit specific types of OEM equipment and are designed to meet specific customer requirements.
Several shroud styles are available to fit specific types of OEM equipment and are designed to meet specific customer requirements.
